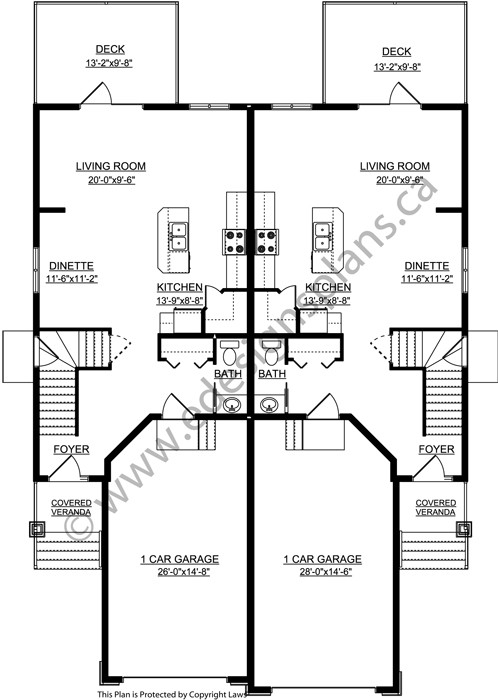

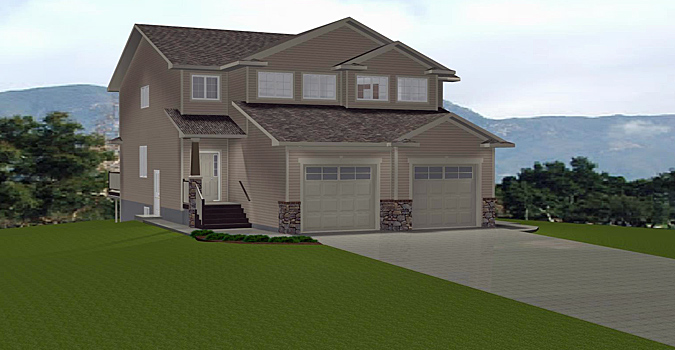

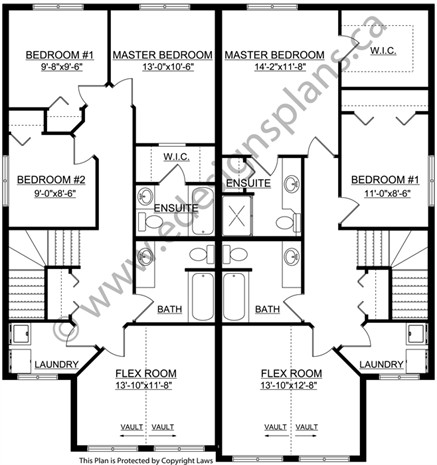

This 2-storey duplex plan has the main living area on the main floor and the bedrooms upstairs. The craftsman style post, covered front veranda, double garage, and brick trim would make it fit well into any residential area. The kitchen, dinette, and living room are open concept. Choose from two different floor plans, one with 2 bedrooms or one with 3 bedrooms. The master bedrooms in each unit have a walk-in closet and 3-piece ensuite. There is a flex room in both plans on this level, each with a vaulted ceiling. Laundry is on the second floor. This duplex plan is very unique in that the lower level has walkout suites. The walkouts are through double garden doors at the rear. These single bedroom units have a kitchen, living room, a stackable washer/dryer, and a 3-piece bathroom. Enter from the side to a common area as the utility rooms are shared with the units upstairs. A great floor plan for rental income.
E-Designs Plans
Quality and Accurate Plans

Duplex
1574 Sq. Ft.
42'-0"
57'-0"
2 + 2 Suites
2x6
2&3
2
1
Yes
Yes
Yes
All Units
Yes
9'-0"
9'-0"
8'-0"
Flex Room
10'-9"
1
10'x8'

Home Style:
Living Area:
Width:
Depth:
Number of Units:
Framing:
Bedrooms:
Full Baths:
Half Baths:
Dinette/Nook:
Den/Office:
Pantry:
Laundry:
Finished Basement:
Foundation:
Main Floor Ceiling:
Second Floor Vaulted Ceiling:
Garage Ceiling:
Garage Bays:
Garage Door Sizes:
Specifications
Plan Decsription

Main Floor Second Floor Lower Floor
Print this Floor Plan
Print Floor Plan
Print this Floor Plan
Print this Plan
Select and Purchase a Plan Package
Print Floor Plan
Print this Floor Plan

2-Storey Duplex - Walkout Basement & Legal Suites
