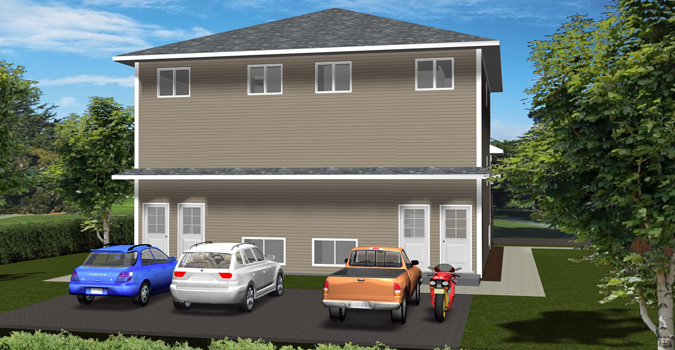

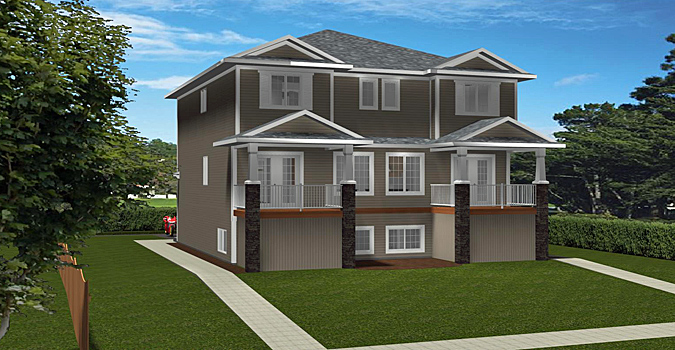

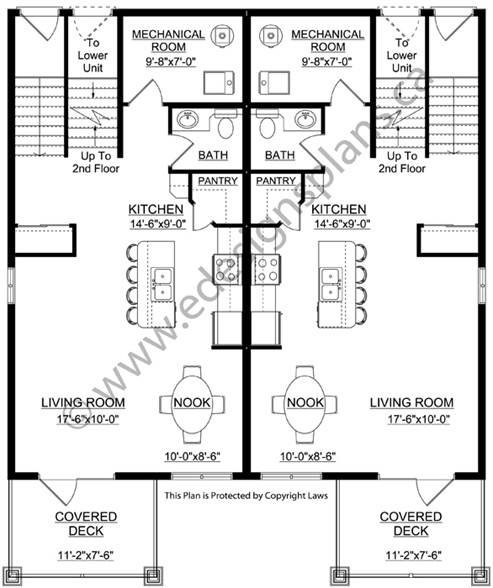

This duplex has separate entrances at the back for the main floor and basement legal suites for added privacy. The main floor has its own mechanical rooms so access to the basement is not necessary for this purpose. This floor plan has the kitchen, nook and living room on the main floor and the bedrooms upstairs. Exit double garden doors from the living room to access the front covered decks. There is a 2-piece bathroom on this level. Upstairs leads you to the laundry and bedroom area. The master bedroom is on the front of the building and has its own walk-in closet and 2-piece ensuite. There are two additional bedrooms on this level along with a 3-piece bathroom. The entrances from the back lead you downstairs to the legal suites. These are set up with two bedrooms, a storage area, and a living room and kitchenette. These units have a 3-piece bathroom and their own mechanical rooms. A great looking plan to gain some additional rental income.
E-Designs Plans
Quality and Accurate Plans

Duplex
1487 Sq. Ft.
38'-6"
46'-0"
2 + 2 Suites
2x6
3
2
1
Yes
No
Yes
All Units
Yes
9'-0"
8'-0"
8'-0"
No
N/A
N/A
N/A

Home Style:
Living Area:
Width:
Depth:
Number of Units:
Framing:
Bedrooms:
Full Baths:
Half Baths:
Dinette/Nook:
Den/Office:
Pantry:
Laundry:
Finished Basement:
Foundation:
Main Floor Ceiling:
Second Floor Vaulted Ceiling:
Garage Ceiling:
Garage Bays:
Garage Door Sizes:
Specifications
Plan Decsription

Main Floor Second Floor Lower Floor
Print this Floor Plan
Print Floor Plan
Print this Floor Plan
Print this Plan
Select and Purchase a Plan Package
Print Floor Plan
Print this Floor Plan

2-Storey Duplex with Rear Entrances & Legal Suites
