Use the Front for the Back or the Back for the Front!

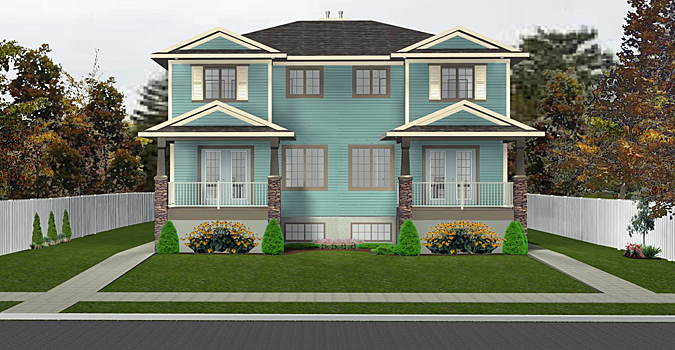

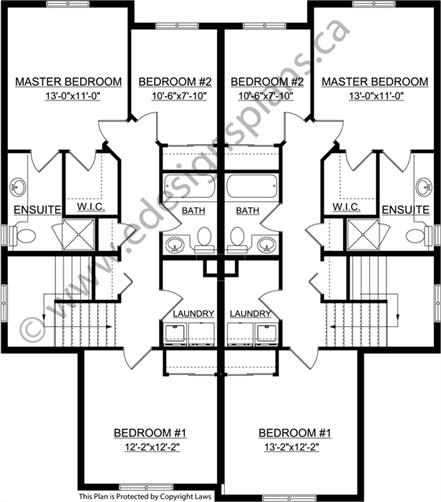

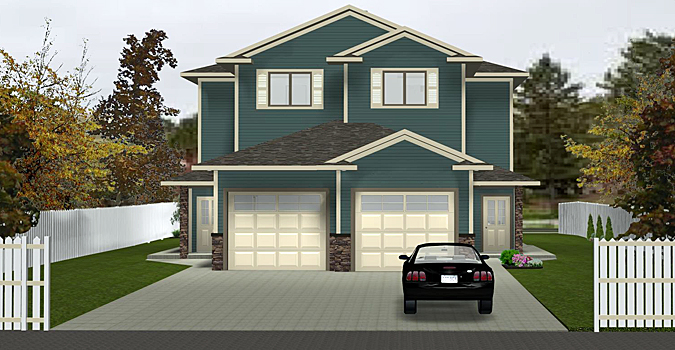

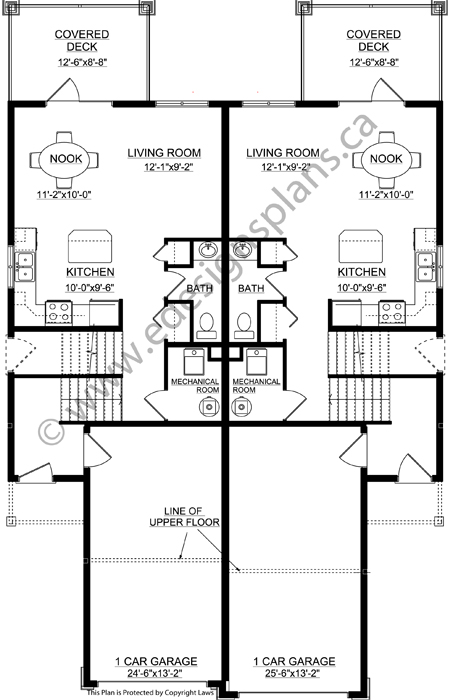

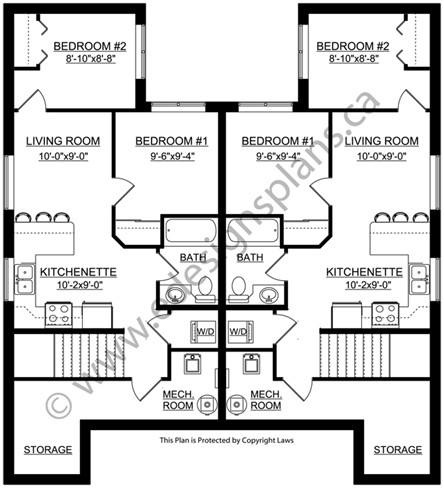

A great duplex design. These units each have their own mechanical rooms and laundry so there is no need to share a common area. Entries for the legal suites are from the side. This duplex has a rear attached garage. The main living area in these suites is on the main floor. Towards the front of the building is an L-shaped kitchen, living room, and nook. Double garden doors lead out to the covered deck with craftsman style posts giving this duplex great curb appeal. The three bedrooms are all upstairs, along with the laundry room. The master bedroom has a walk-in closet and 3-piece ensuite. The back bedroom extends over the garage area. The basement has 2-bedroom legal suites. Rent these out separately or sell the upper units with the owner having extra income from these lower suites to offset their own mortgage.

E-Designs Plans
Quality and Accurate Plans

Duplex
1347 Sq. Ft.
40'-0"
55'-0"
2 + 2 Suites
2x6
3
2
1
Yes
No
No
All Units
Yes
9'-0"
8'-0"
8'-0"
No
10'-7"
1
10'x8'

Home Style:
Living Area:
Width:
Depth:
Number of Units:
Framing:
Bedrooms:
Full Baths:
Half Baths:
Dinette/Nook:
Den/Office:
Pantry:
Laundry:
Finished Basement:
Foundation:
Main Floor Ceiling:
Second Floor Vaulted Ceiling:
Garage Ceiling:
Garage Bays:
Garage Door Size:
Specifications
Plan Decsription

Main Floor Second Floor Lower Floor
Print this Floor Plan
Print Floor Plan
Print this Floor Plan
Print this Plan
Select and Purchase a Plan Package
Print Floor Plan
Print this Floor Plan

Duplex with Rear Garages & Basement Legal Suites
