This Duplex is built with a 4 foot foundation. The mechanical is located in the crawl space. From the front covered veranda, you enter into the foyer. From here, you can go directly upstairs or through to the main living area. If you enter from the garage, there is a coat closet and half bath. The L-shaped kitchen has an plenty of cabinet and counter space, as well as an island with a lunch counter. Double garden doors lead out to the large rear deck from the dinette. The living room has a corner gas fireplace for those cooler days. Upstairs there is a large master bedroom over the garage with a walk-in closet and a 4-piece ensuite sporting his and hers sinks. Two more bedrooms with large closets are in the rear, accompanied by a 3-piece bathroom. There is a linen closet in the hallway. Laundry is also located on this level for added convenience. The single car oversize garage has a 10'x8' door.
E-Designs Plans
Quality and Accurate Plans

Duplex
1802/1817 Sq. Ft.
48'-0"
64'-0"
2
2x6
3
2
1
Yes
No
No
Second Floor
No
4'-0"
9'-0"
8'-0"
No
10'-2"
1
10'x8'

Home Style:
Living Area:
Width:
Depth:
Number of Units:
Framing:
Bedrooms:
Full Baths:
Half Baths:
Dinette/Nook:
Den/Office:
Pantry:
Laundry:
Finished Basement:
Foundation:
Main Floor Ceiling:
Second Floor Vaulted Ceiling:
Garage Ceiling:
Garage Bays:
Garage Door Sizes:
Specifications
Plan Decsription

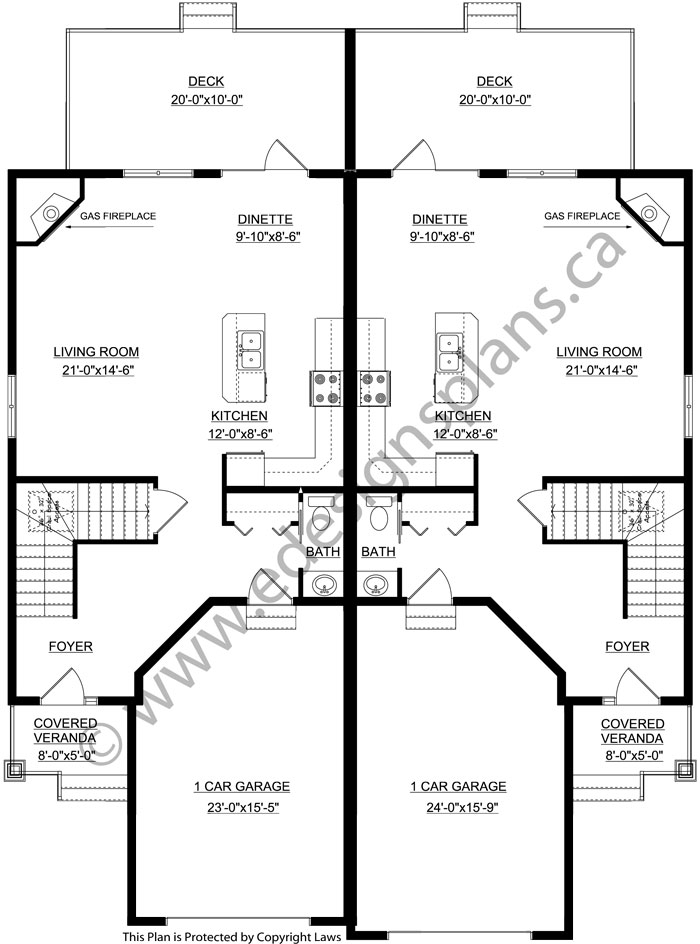

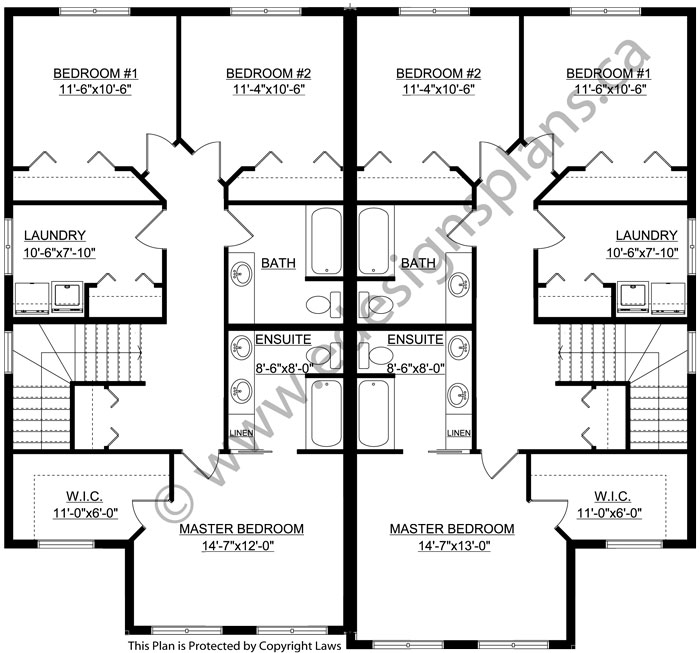

Main Floor Second Floor
Print this Floor Plan
Print Floor Plan
Print this Floor Plan
Print this Plan
Select and Purchase a Plan Package
Print Floor Plan
Print this Floor Plan

3 Bedroom Duplex - Single Car Attached Garage
