Plan Description
Multi Family Home Plans
More Home Plan Styles
More Information
View Floor Plan Below
Contact Us
Specifications
plan number holder
1430 Sq. Ft. Per Unit in this Front to Back Duplex. This narrow lot Duplex has been designed to be built cost effectively keeping with a basic, yet very functional design. The lowered front entry gives access to the lower level and upper level. The main floor has an open design. The large "U"-shaped kitchen with an extended lunch counter is open to the living room. The dining area is also open to the kitchen. The lower level has been designed with 9 foot ceilings to accommodate larger windows in all the rooms. This level features three spacious bedrooms, a three piece bath, and a laundry room. There is a storage area under the stairway across from the mechanical room. This plan is perfect for a narrow or corner lot.
Duplex
1430 Sq. Ft.
23'-0"
64'-0"
2
2x6
3
1
1
Yes
No
No
Lower Floor
Yes
9'-0"
8'-0"
N/A
N/A
N/A
N/A
Home Style:
Living Area:
Width:
Depth:
Number of Units:
Framing:
Bedrooms:
Full Baths:
Half Baths:
Dinette/Nook:
Den/Office:
Pantry:
Laundry:
Finished Basement:
Foundation:
Main Floor Height:
Second Floor Height:
Garage Height:
Garage Bays:
Garage Door Sizes:

Print this Floor Plan
Print this Plan
Print Floor Plan
Print this Floor Plan

Front to Back Bi-Level Narrow Lot Duplex

Plan: 2010513

Plan:  2010513

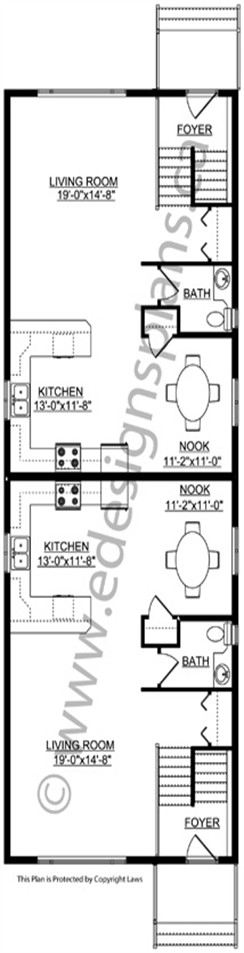

Main Floor
Main Floor

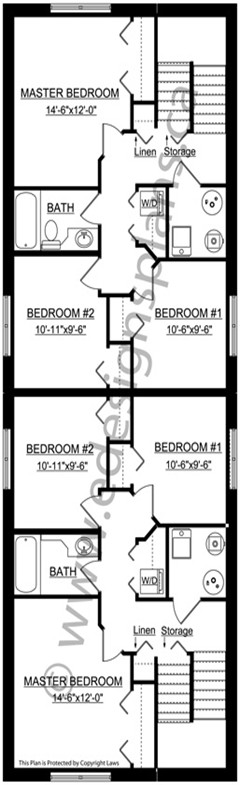

Lower Floor
Lower Floor
