Plan Description

Multi Family Home Plans

More Home Plan Styles

More Information

View Floor Plan Below

Contact Us

Specifications

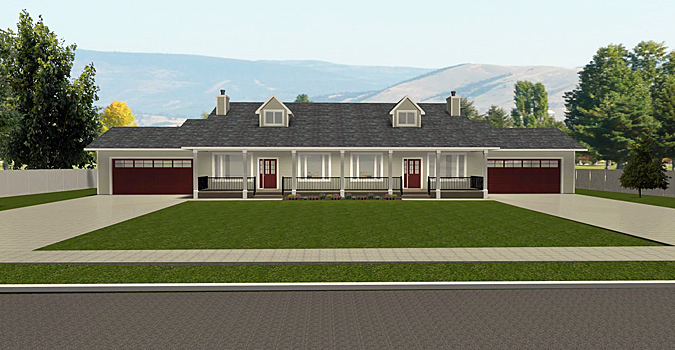

With the front covered veranda, craftsman style posts, and false gables, this plan has a country style. A double attached garage makes this a great duplex. The false gables allow for additional lighting in the kitchen, dining, and living room areas, which have a vaulted ceiling. The kitchen has a corner walk-in pantry and a large angled island. The living room has a fireplace for those cooler evenings or rainy days. There are two bedrooms in each unit, each with their own walk-in closet. The master bedroom also has a 4-piece ensuite. A large mudroom with a washer/dryer and plenty of closet space is right off the garage or the rear entrance. The crawl space access is in the mechanical room. A great looking duplex.

Duplex
1530 Sq. Ft.
108'-0"
48'-0"
2
2x6
2
2
0
Yes
No
Yes
Main Floor
No
4'-0"
9'-0"
N/A
11'-2"
2
18'x8'

Home Style:
Living Area:
Width:
Depth:
Number of Units:
Framing:
Bedrooms:
Full Baths:
Half Baths:
Dinette/Nook:
Den/Office:
Pantry:
Laundry:
Finished Basement:
Foundation:
Main Floor Height:
Second Floor Height:
Garage Height:
Garage Bays:
Garage Door Sizes:
